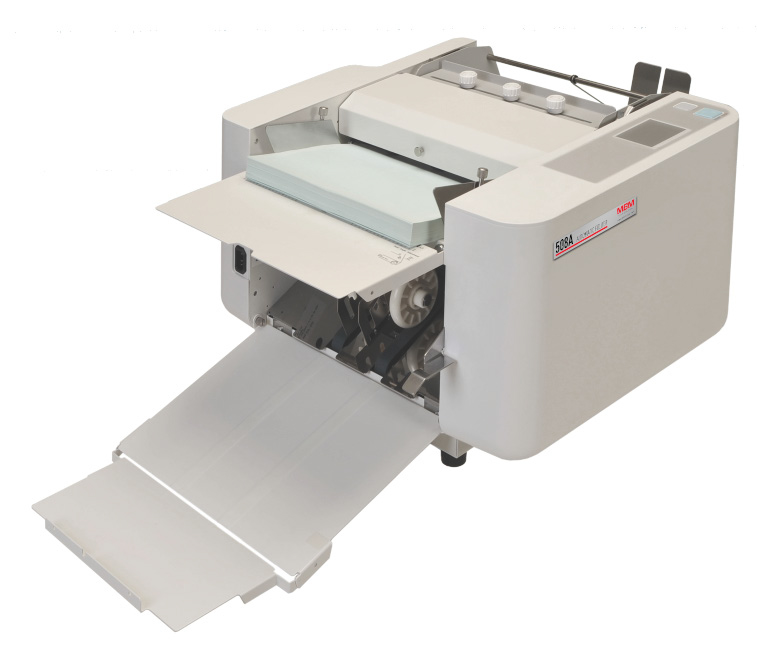

MBM 508A Paper Folder

Reliable automatic folder that comes pre-programmed with 18 standard folds. Up to 24 custom jobs can be stored in memory.

Automatic 3 roller friction feed system. Pre-programmed with 18 standard folds. Stores 24 custom folds in memory. Automatic feed table elevation. Features paper feed pressure and separator pressure adjustment. Color LED touch screen control panel includes 4 digit addition and subtraction digital counter. Test button folds 2 sheets for inspection. Automatically recognizes and displays paper size. Extended exit tray for neat stacking of folded sheets. Automatic conveyor and self-setting exit rollers ensure smooth ejection of folded paper. Single sheet feeding automatically maintained for different weights of paper. Auxiliary paper guide for cross folding. Load and unload paper from same side. Display alert and audible signal in case of incorrect operation. Skew and micro-adjustment dials. Fully enclosed fold tables for quiet operation. Quick-release roller system for easy maintenance. Optional scoring, micro-perforating, and slitting units.

Specifications

Speed, sheets per hour Up to 14,400
Paper size, inches 3 1/2 x 5 to 11 x 17
Paper weight, pounds 12 to 80
Sheet capacity 500
Electrical requirements 115 V, 60 Hz
Dimensions (D x W x H), inches 39 3/4 x 21 1/2 x 19 3/4
82
Product Literature (PDF): MBM-508A-Folder.pdf
